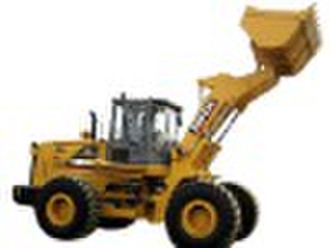

CHENGGONG CG956G 5 ton Wheel Loader

CHENGGONG CG956G Wheel Loader . Wheel Loaders Success Comes From New Choice: Enhanced version of superb ZL50E-II, CG956G is more stable and reliable with super dynamic power and high efficiency, which could easily meet demands of heavy work load CG electric-hydraulic transmission with four forward speeds & three reverseWorking cycle time shortened to 10.7s; Working hydraulic system applies pilot control Full hydraulic steering system Newly-designed dash panel & operation box equipped on seat A/C & fuel gauge Electronic-control backward-opened engine cover for easy maintenance Strengthened bucket with wear-resisting plate and teeth 308L fuel tank World famous fluid connectors & PERMCO pump Overall Data Operating Mass 16600kg Rated Bucket Capacity 3.1m3 Rated Load 5000kg Maximum traction 160kN Grade Ability 300 Breakout Force 180kN Static tipping load (full 350 turn) >10000kg Wheelbase 3280±30mm Center line of rear axle to hitch 1690mm Ground clearance 440±20mm Hinge pin height at carry position 550mm Maximum rollback at ground 40.4º Maximum rollback at carry position 47.5º Maximum dump height 3132±50mm Hinge pin height at full lift 4200mm Turning radius 6605mm Maximum overall height 5534mm Maximum rollback at full height 56.5º Bucket dump at full height 45º Dump reach 1060±50mm Departure angle 30º Digging depth 40mm Tread width 2200mm±10mm Width over tires 2795 mm±50mm Maximum Steering angle 35º Turning radius outside bucket 7375mm Turning radius outside tires 6900mm Engine Shangchai C6121 Type 4-cycle, turbocharged, water-cooler Rated power 162kW Peak torque 843 N.m Displacement 10.5L Cylinder-BorexStock 6-121×152.4mm Aspiration Turbocharged Transmission Hangchi4WG180 Type Counter shaft-type power shift, semi-automatic electrical hydraulic shift control Converter Single-stage, singe-phase, three elements torque converter Travel Speeds (km/h) Forward Gear 1 6.7 Gear 2 11.8 Gear 3 23 Gear 4 36 Reverse Gear 1 6.7 Gear 2 11.8 Gear 3 23 Steering full hydraulic steering Axles dry disk brakes Brakes Service brakes Air over hydraulic Parking brakes Spring apply air release drum brake Emergency brakes Using parking brake, the brake will automatically/manually apply. Hydraulic system Relief valve setting 17.5Mpa Hydraulic cycle time, rated load in bucket 12.5s Raise 6.2 s Dump 4.5 s Lower (empty) 1.8s Tires 23.5-25-16PR Equipment Standard Shangchai C6121 ZF4WG200Hangchi4WG180 Distributing valve Pilot control valve Working pump Bucket Positioner -Tilt adjustment Bucket Lift kickout General purpose bucket Pilot control Brake control valve Air conditioner Backup alarm Optional Side dump bucket Rock bucket Log fork Steel tube fork Light material bucket Dimensions with Bucket Overall length 8050±100mm Overall width 3000±30mm Overall height 3470±50mm
